Adhesive_Sealants

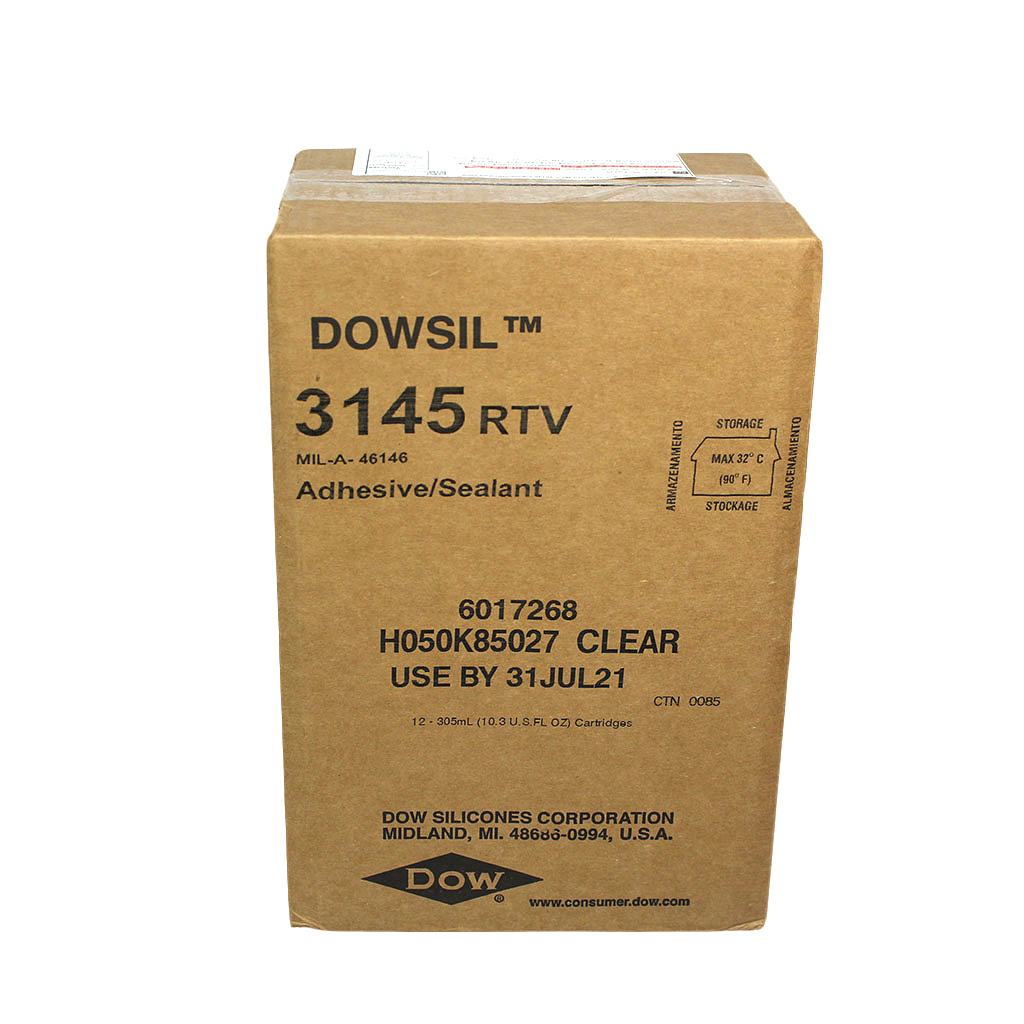

3145 RTV

1액형, 회색, 수분 RTV, 비흐름성, 고강도, UL 및 Mil Spec.

사용:

  • Sealing openings in modules and housings.
  • Adding mechanical stability to individual components.
  • Assembly of components on PWBs.
  • Sealing in and around wired and electrical leads.







속성

*이 값은 일반적인 속성이며 제품 사양에는 사용되지 않습니다.

물리적 특성

  • Color Clear, Grey
  • Dielectric Strength 500 volts per mil v/mil
  • Non-Slump Yes
  • Nonflowable Yes
  • Primerless Adhesion Yes
  • Room Temperature Cure 48 Hours
  • Shelf Life 360 Days
  • Water Resistant Yes
  • 가공 1 액형
  • 경도 - Shore A 45
  • 경화 타입 메톡시 경화, 알콜 경화, 축합 반응
  • 경화 특성 Room Temperature Long Working Time > 10 min
  • 끈적임 완화 시간-50% RH 55 Minutes
  • 비중 1.1 @ 25°C
  • 선형 CTE 370 um/m/Deg C
  • 신장 660 %
  • 유전 계수 at 100 Hz < 0.001
  • 유전율 at 100 Hz 2.83
  • 유전율 at 100 kHz 2.83
  • 인장 강도 940 psi
  • 저항 Very High Temperature (above 350°F/177°C)
  • 접착 Nylon 6/6, 유리
  • 제품 기술 RTV Adhesives and Sealants
  • 체적 저항 440000000000000 Ω・cm
  • 특성 MIL Spec
  • 파트 번호 원파트

혜택:

  • Non-flowing
  • High tensile strength and elongation
  • Enhanced thermal stability
  • MIL-A-46146 Group II/III, TY I
  • No mixing required
  • Room temperature cure, no ovens required
  • Faster in-line processing with optional heat acceleration
  • Can be considered for uses with Mil Spec requirements
